maximum overlap

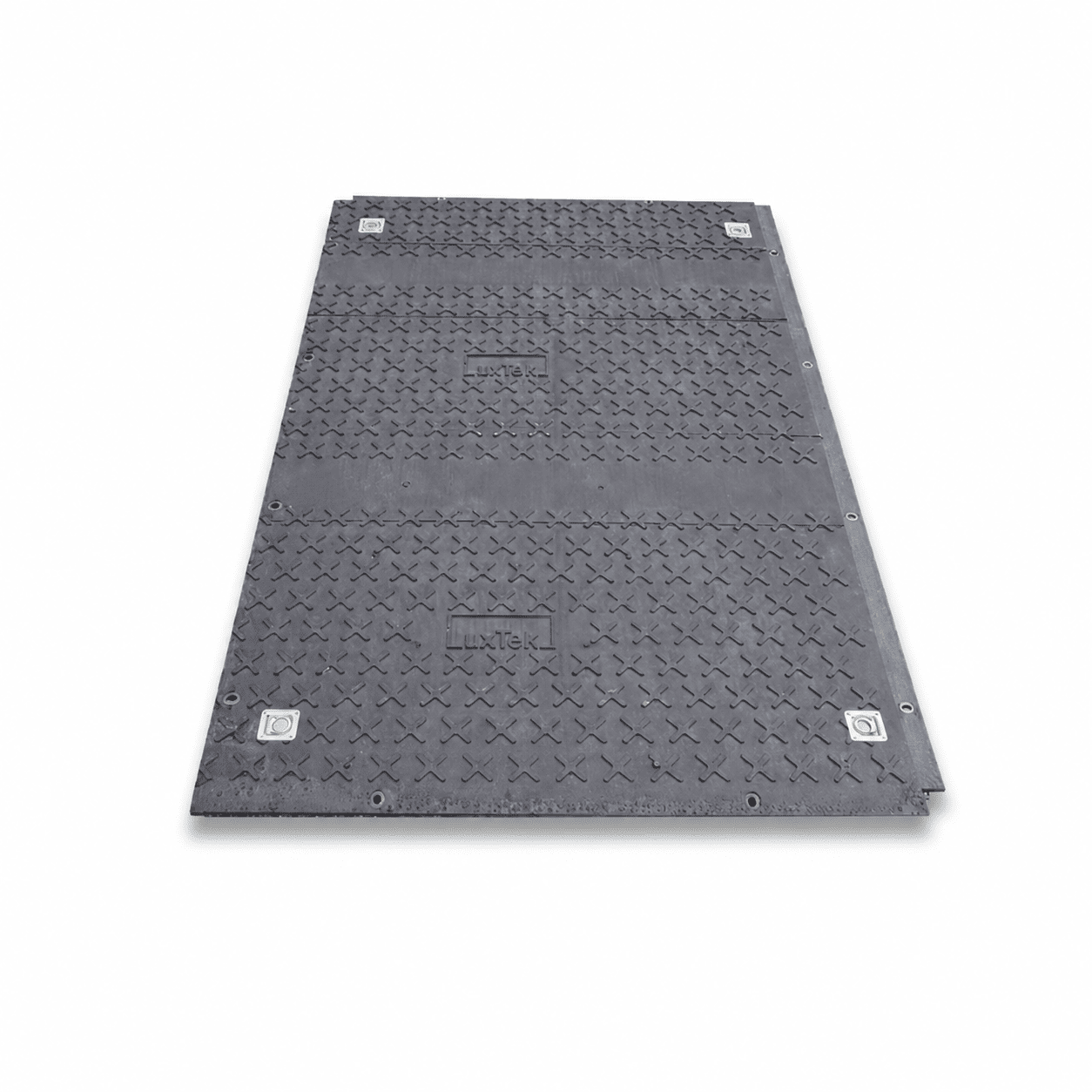

Construction mat Maximum Overlap - Image 2

Construction mat Maximum Overlap

Heavy-equipment construction mat with overlapping connection system, made from recycled plastic. Long service life, available in double-sided or single-sided structure.
  • Overlapping connection system (10 connection points) for seamless installation & no tripping hazards
  • Loadable up to ≈ 220 tons on paved ground
  • Temperature resistance: −112 °F to +176 °F
  • No water absorption
  • Colors: black and multicolored
  • Available as 100% recycled material
  • Thickness (core):1.34 in, total thickness 1.61 in
1.34 in thickness
Item numberProductSize (L × W)Approx. weightUnpaved & wetUnpaved & dryPaved
MAXOL3000200034Construction Mat Maximum Overlap~9.9 × 6.6 ft~463 lbs65 tons145 tons< 220 tons
MAXOL4000200034Construction Mat Maximum Overlap~13.1 × 6.6 ft~600 lbs65 tons145 tons< 220 tons

All load values are guidelines. Actual performance depends on soil class and bearing capacity, temperature, contact area, direction and dynamics of load. We recommend a professional assessment before use.
